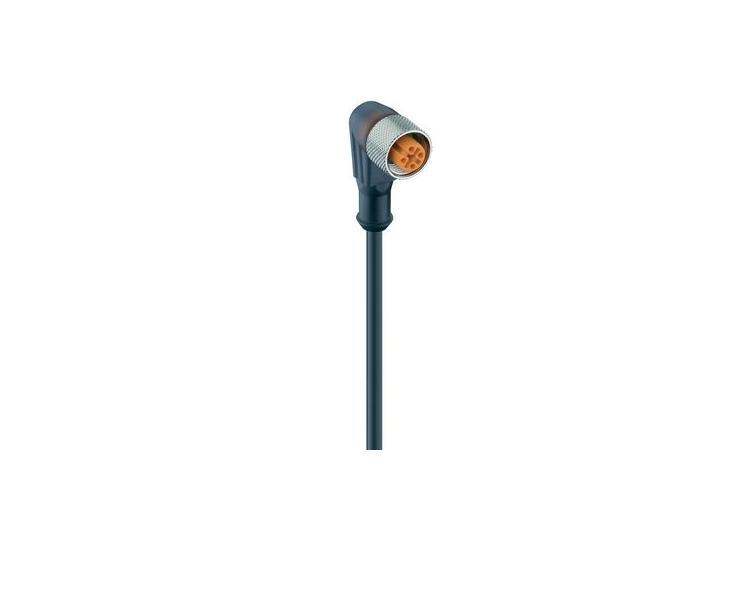

SONIC-VIEW instrument cable, loose end shielded 2 meter loose end shielded cable
Is compatibale with our SONIC-VIEW instruments

Meter

SONIC-VIEW instrument cable, loose end shielded

2 meter loose end shielded cable
Is compatibale with our SONIC-VIEW instruments

Online price starting with:

$30.00

Limited stock available

Order now to avoid disappointment

Cable Specifications
Wire/ pin assignment	PIN 1 \| Brown : +U PIN 2 \| White : alarm output PNP PIN 3 \| Blue : GND PIN 4 \| Black : frequency output PNP PIN 5 \| Gray : analog output 4..20mA
Length	2 meter
Operating temperature range	-25°C / +80°C
Materials
Housing / Molded body	TPU
Insert	TPU
Contact	CuSn, pre-nickeled and 0.8 microns gold-plated
Receptacle shell / knurled screw/ nut / hexagon screw/nut / sleeve	CuZn, nickel-plated
O-ring	FKM
Outer jacket	PUR, halogen free
Mechanical data
Degree of protection	IP67 Only in locked position with its proper counterparts.
Electrical data
Contact resistance	≤ 5 mΩ
Nominal current at 40°C	4A
Nominal voltage	60V
Rated voltage	63V
Test voltage	1.5 kV eff. / 60 s
Insulation resistance	> 10⁹ Ω
Pollution degree	3
