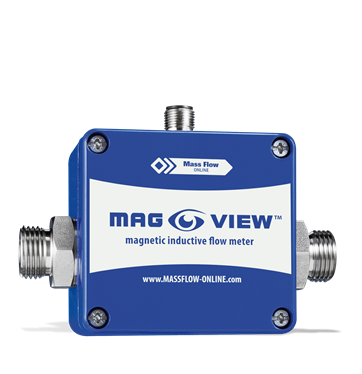

MVM-200-PN Magnetic Flow Meter

MVM-200-PN
Low-Flow Magnetic Inductive Flow meters for water-like liquids

  • Compact, weatherproof (IP65) design
  • No moving parts (no mechanical wear)
  • Interference free operation
  • Independence to inlet/outlet pipework
  • Fast response
  • Free pipe cross section: low ΔP, insensitive to contamination
Due to the phase-out of this instrument model there is currently a limited stock of only 2 pieces left.
The MVM-200-PN is substituted by the
MVM-250-PN which has an optimized/improved flow range.
Water like liquids
Pulse output
MVM-200-PN Magnetic Flow Meter
MVM-200-PN Magnetic Flow Meter
MVM-200-PN Magnetic Flow Meter
MVM-200-PN Magnetic Flow Meter
MVM-200-PN Magnetic Flow Meter

MVM-200-PN Magnetic Flow Meter

MVM-200-PN
Low-Flow Magnetic Inductive Flow meters for water-like liquids

  • Compact, weatherproof (IP65) design
  • No moving parts (no mechanical wear)
  • Interference free operation
  • Independence to inlet/outlet pipework
  • Fast response
  • Free pipe cross section: low ΔP, insensitive to contamination
Due to the phase-out of this instrument model there is currently a limited stock of only 2 pieces left.
The MVM-200-PN is substituted by the
MVM-250-PN which has an optimized/improved flow range.
Online price starting with:
$518.12
Fully stocked
Dispatch will be within 2 days

Qty Discounts Off Price

Amount
5+
10+
Discount
10%
20%
Price
€466.31
€414.50

Flow ranges

This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 10 .. 200 lpm.

ModelMinMaxoutput signal starts
MVM-200-PN10 l/min200 l/min~ 5 l/min

Scope of delivery

  • Magnetic Flow Meter
  • Calibration certificate
  • Packing box
  • MAG-VIEW Manual
  • (optional) instrument cable

Features of MVM-200-PN Magnetic Flow Meter

  • Makes liquid flows visible by
  • Pulse output
  • Blinking LED (red/green)
  • No mechanical wear
  • No moving parts
  • Ease of mounting and operation
  • Mounting in any position
  • Free pipe cross section
  • No additional pressure drop
  • Fast response (<500 ms)
  • Insensitive with contaminated liquids
  • Ideal solution for interference free operation combined with a long-life cycle
  • Can be used in areas where flow sensors with moving parts cannot be applied
  • Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines

Technical specifications

Measurement / control system

Flow range
10.. 200 l/min
Accuracy
±2% RD
Reproducibility
1%
Pressure rating
PN16
Nominal diameter
DN 20
Flow / alarm indication
Green LED: flow proportional flashing
Signal output starting from
~ 5 l/min
Medium
Water and other conductive liquids
(minimum conductivity of 50 μS/cm)
Medium Temperature
-0... 90 °C (not freezing)
Rangeability
1:20
Response time (sensor)
< 500 ms

Mechanical parts

Material (wetted parts)
Housing: Aluminium pressure diecasted
Electrodes: Stainless Steel 1.4571
Process connections: Stainless Steel 1.4571
Measuring pipe: PEEK Victrex 450GL30
Gasket: EPDM
Process connections
G 1'' BSP male thread
Ingress protection
IP65

Electrical properties

Power supply
24 Vdc ±10%
Max. power consumption
max. 80 mA
Electrical protection measures
short-circuit proof (up to 30V)
polarity protection (up to -30V)
Frequency output
Pulse rate / K-factor : 200 pulses/l
Resolution : 5 ml/pulse
Signal shape : Push-Pull
Signal shape
Square wave signal, pulse duty ratio 50:50, Push-Pull
Signal current
max. 20 mA, current limited
Pin assignment
PIN 1: +UB
PIN 2: -
PIN 3: GND
PIN 4: frequency output
PIN 5: do not connect
Electrical connection
5-pin-plug M12x1

Product details

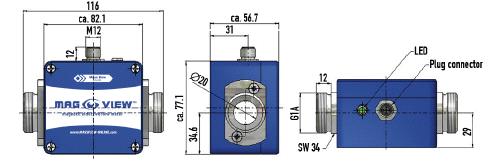

MVM-200-PN dimensions
MVM-200-PN dimensions
Electrical connection PN
Electrical connection PN

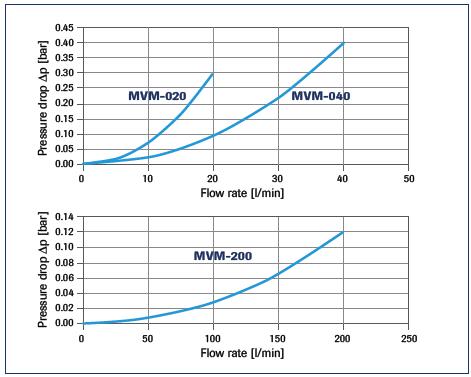

Pressure drop MVM-040/200-PN
Pressure drop MVM-040/200-PN


Applications

The fields of application for this magnetic flow meter are diverse:

  • Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
  • Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm
  • Water distribution
  • Chemical feed
