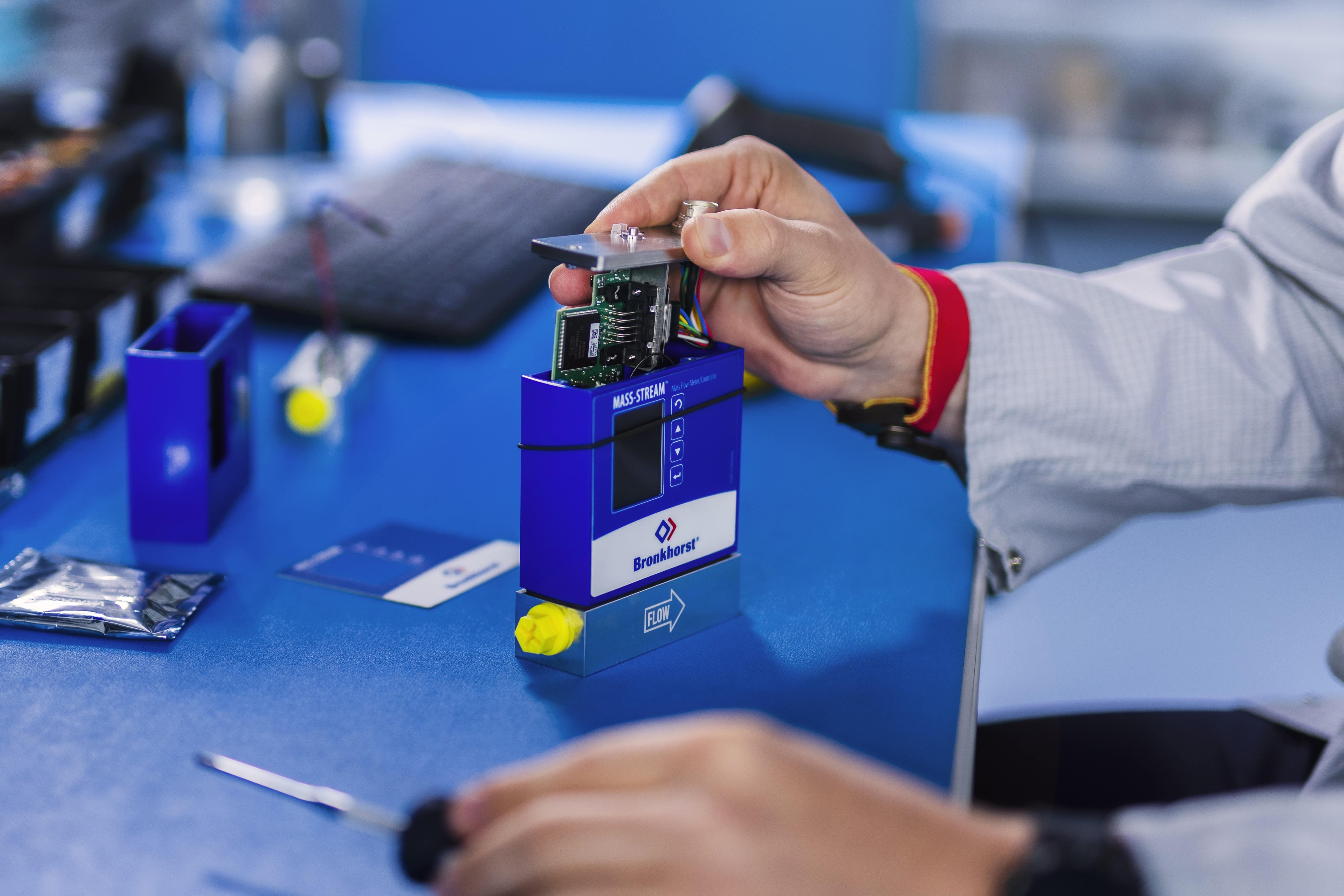

MASS-STREAM Thermal Mass Flow Meter for GasesMS-105 and MS-109

MASS-STREAM mass flow meters for gases are based on the thermal through-flow measurement principle.

Covering a wide measurement range, from 0.5...50 ln/min up to 10...1000 ln/min Air equivalent.
Each Mass Flow Meter is equipped with exciting features, like our multi-functional on-board display for indicating actual flow, totalized flow, and alarms.

All 4 models, shown in the table below, have 6 pre-installed gases: Air, N2, O2, Ar, CH4, CO2;
analog 4-20mA output signals and Digital RS-232 communication.
With Bronkhorst's FLUIDAT Onboard it is possible to select other gases or mixtures via our free software Bronkhorst FlowSuite.

Press release information

Max. capacities in ln/min (SLM) per model for various gases
AirN2O2
ArCH4CO2

MS-105

5050481003054
MS-106
200200200400120215
MS-1085005005001000300545
MS-10910001000120012006001090
MS-105 MASS-STREAM 50 ln/min
MS-105 MASS-STREAM 50 ln/min
  • up to 50 ln/min Air
  • other pre-installed gases: N2, O2, Ar, CH4, CO2 with referring converted flow ranges
  • Display
$1290.45
Fully stocked
Dispatch will be within 2 days
MS-106 MASS-STREAM 200 ln/min
MS-106 MASS-STREAM 200 ln/min
  • up to 200ln/min Air
  • other pre-installed gases: N2, O2, Ar, CH4, CO2 with referring converted flow ranges
  • Display
$1332.45
Fully stocked
Dispatch will be within 2 days
MS-108 MASS-STREAM 500 ln/min
MS-108 MASS-STREAM 500 ln/min
  • up to 500 ln/min Air
  • other pre-installed gases: N2, O2, Ar, CH4, CO2 with referring converted flow ranges
  • Display
$1374.45
Fully stocked
Dispatch will be within 2 days
MS-109 MASS-STREAM 1000 ln/min
MS-109 MASS-STREAM 1000 ln/min
  • up to 1000 ln/min Air
  • other pre-installed gases: N2, O2, Ar, CH4, CO2 with referring converted flow ranges
  • Display
$1573.95
Fully stocked
Dispatch will be within 2 days

MASS-STREAM THERMAL MASS FLOW METER FOR GASES

The thermal Mass Stream Bronkhorst® mass flow meters for gases based on direct through-flow measurement are produced in Germany since 1997.

The MASS-STREAM™ series D-6400 works following the constant temperature anemometer principle. Our MASS-STREAM™ instruments cover a wide range of measurement and control applications in almost every industry sector - like mechanical engineering and process industry, gas production, food and beverage industry as well as environmental engineering and the chemical industry.

  • The MASS-STREAM thermal mass flow meter series operate on the principle of direct thermal mass flow measurement (no by-pass); rather than measuring the volume flow it measures the actual mass flow, without the need of temperature and pressure correction.MASS-STREAM Thermal Mass Flow display
  • The modern multi-coloured TFT display provides an multi-functional display: actual flow, fluid sets, totalizer with memory and reset, alarm, setup and more.
  • With Bronkhorst’s FLUIDAT Onboard it is possible to select other gases or mixtures via our free software Bronkhorst FlowSuite
  • These models have 6 pre-installed gases on board that can be set via the onboard display; Air, Nitrogen(N2), Oxygen(O2), Argon(Ar), Methane(CH4), Carbon dioxide(CO2)
  • The digital thermal gas mass flow meters are standard equipped with 4…20 mA and RS-232 output signals.
  • The highly accurate FLUIDAT gas database ensures best in class conversion from Air to the customer gas. Additionally, the on-board gas database is used for real-time corrections of the flow measurement based on the actual process temperature.
