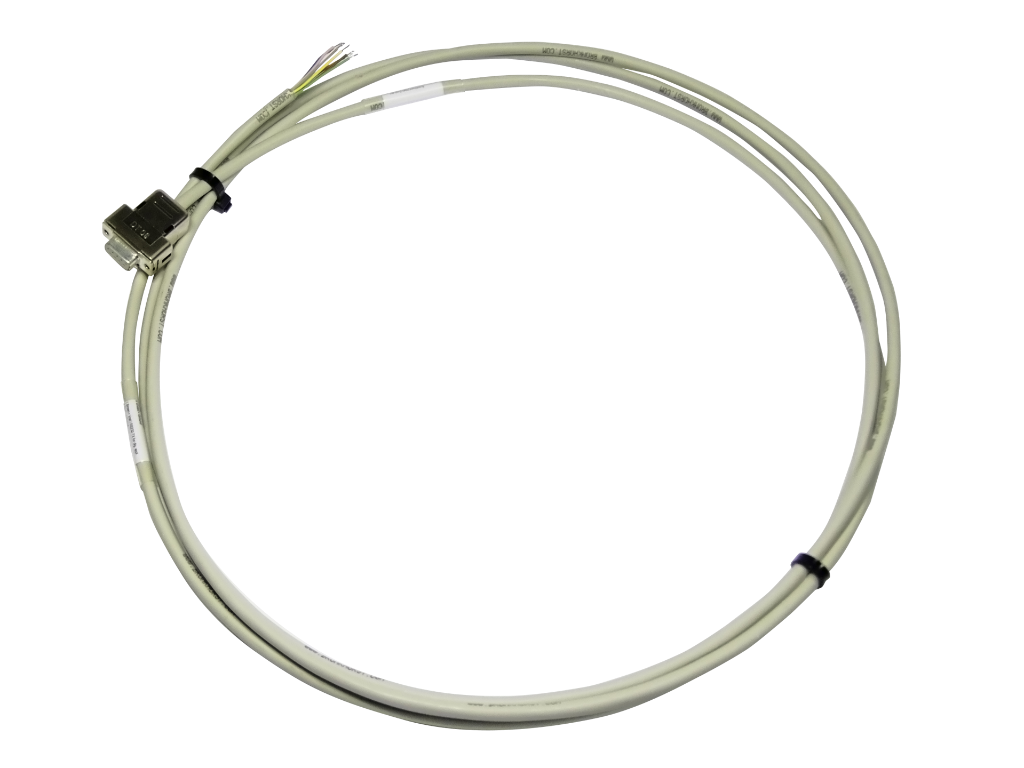

Câble 3 mètres DB9 à fil nu [7.03.004]
Connect IP40 flow instrument to custom power supply / readout
Bronkhorst EL-FLOW IP40 instruments
Use a loose-end cable with a 9-pin D-sub female connector on the instrument side and refer to the hook-up diagram for analog operation to connect the required signals
Caractéristiques du Câble 3 mètres DB9 à fil nu [7.03.004]
hook-up diagram
| 1 = Brown | 4 = Green | 7 = Grey |
| 2 = Red | 5 = Blue | 8 = White |
| 3 = Yellow | 6 = Pink |
Housing = Shield
