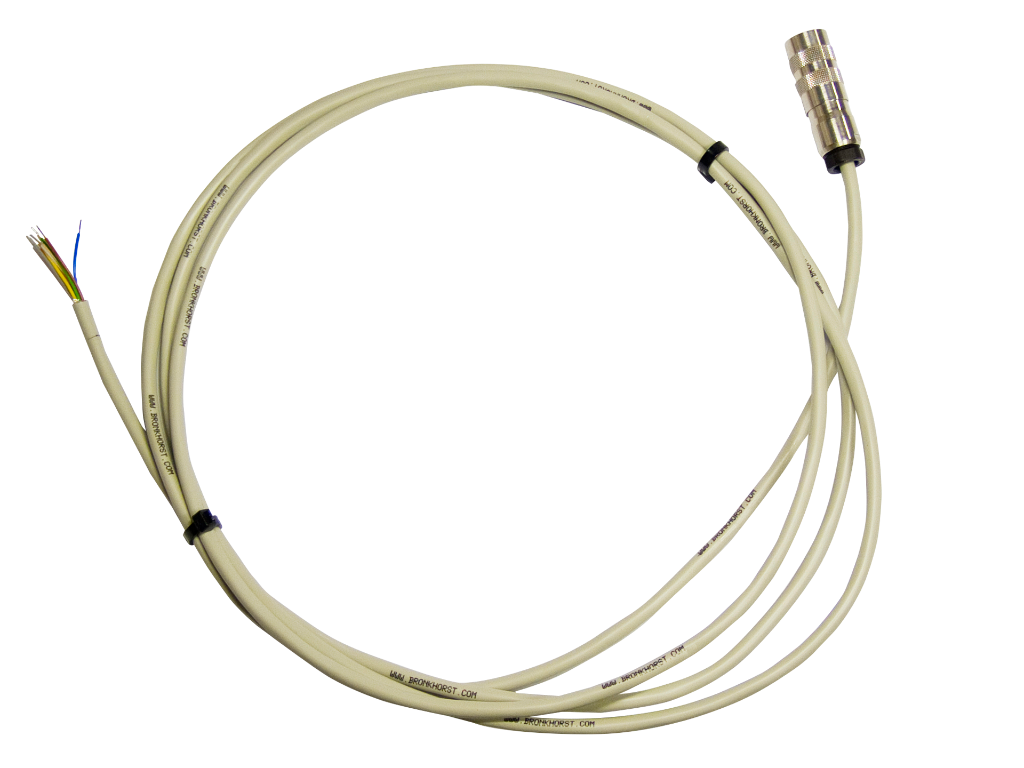

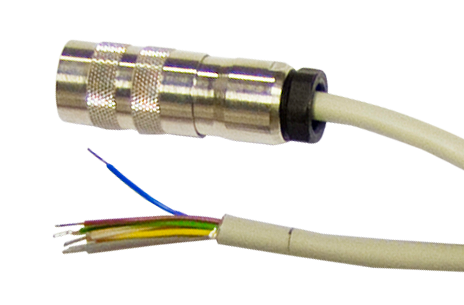

Interconnecting Cable 8-Din female loose end, 10 meter [7.03.541]

This cable can be used to connect a MASS-STREAM instrument via to a computer, PLC, PAC or DAQ system..

You can also use the RS-232 T-part cable to connect this cable and the power supply to a MASS-VIEW(r) instrument. See example on the picture.


This cable can also be used to measure the analogue output and connect the relays of the MASS-STREAM instrument

Interconnecting Cable 8-Din female loose end, 10 meter [7.03.541]
Interconnecting Cable 8-Din female loose end, 10 meter [7.03.541]
Interconnecting Cable 8-Din female loose end, 10 meter [7.03.541]

Interconnecting Cable 8-Din female loose end, 10 meter [7.03.541]

This cable can be used to connect a MASS-STREAM instrument via to a computer, PLC, PAC or DAQ system..

You can also use the RS-232 T-part cable to connect this cable and the power supply to a MASS-VIEW(r) instrument. See example on the picture.


This cable can also be used to measure the analogue output and connect the relays of the MASS-STREAM instrument

Online price starting with:
$64.05
Fully stocked
Dispatch will be within 2 days
You can still continue your order but the desired quantity is not in stock which is 890 pieces. The new lead time will be provided upon order placement
There are only 890 products in stock. Please adjust the quantity if you wish to proceed with your order.

Features of Interconnecting Cable 8-Din female loose end, 10 meter [7.03.541]

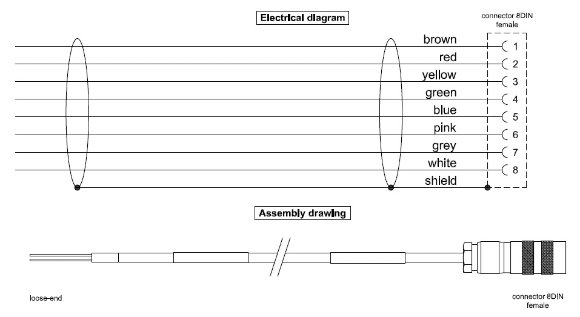

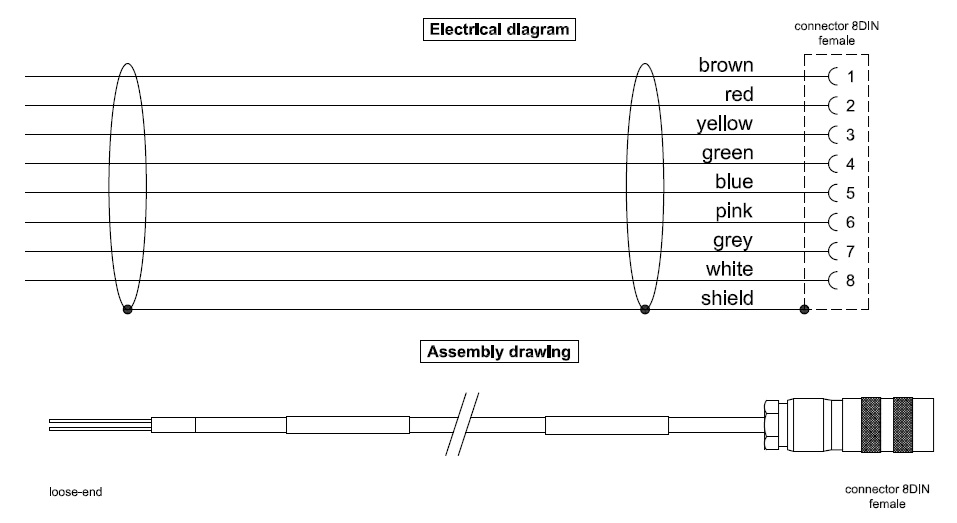

Hook-up Diagram

hook-up diagram

1 = Brown4 = Green7 = Grey
2 = Red5 = Blue8 = White
3 = Yellow6 = Pink
Housing = Shield
