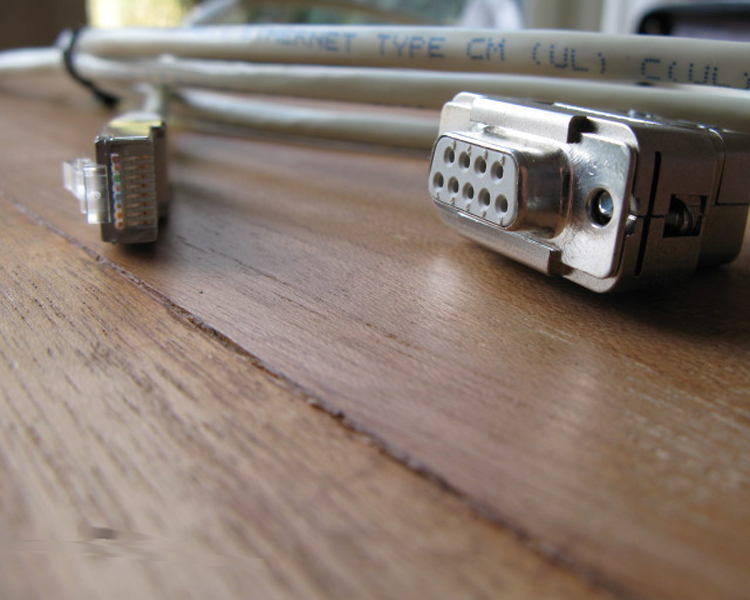

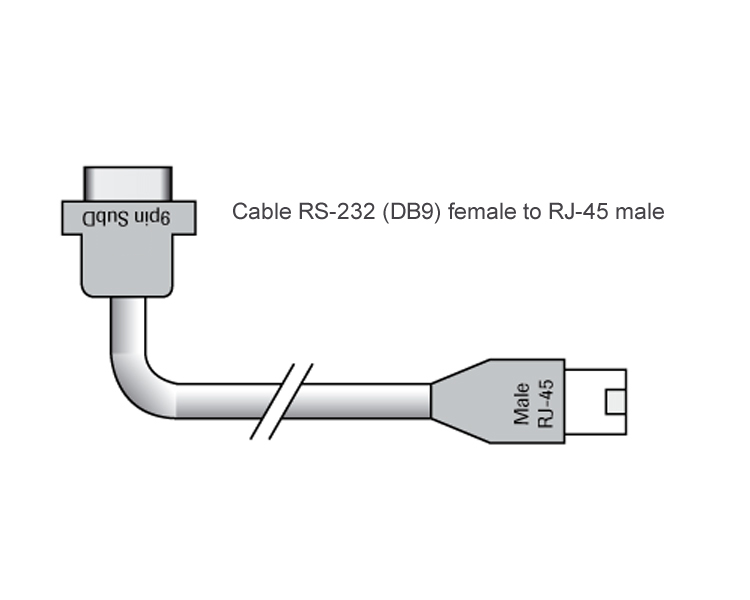

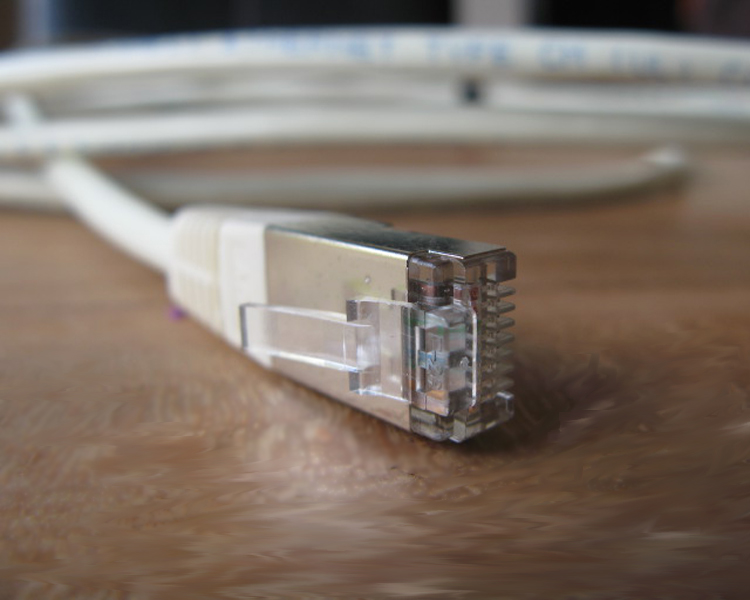

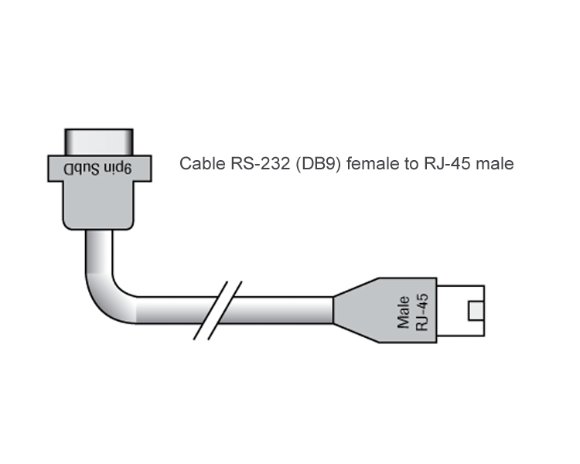

Cable RJ-45 male - DB9 female, 3 meter / 10 ft [7.03.426]

This cable is needed to connect a MASS-VIEW(r) instrument via RS-232 to a computer.

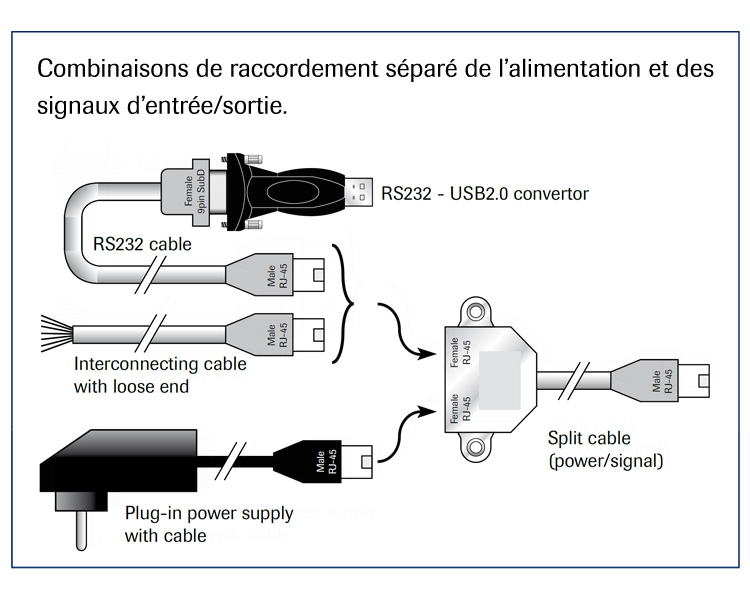

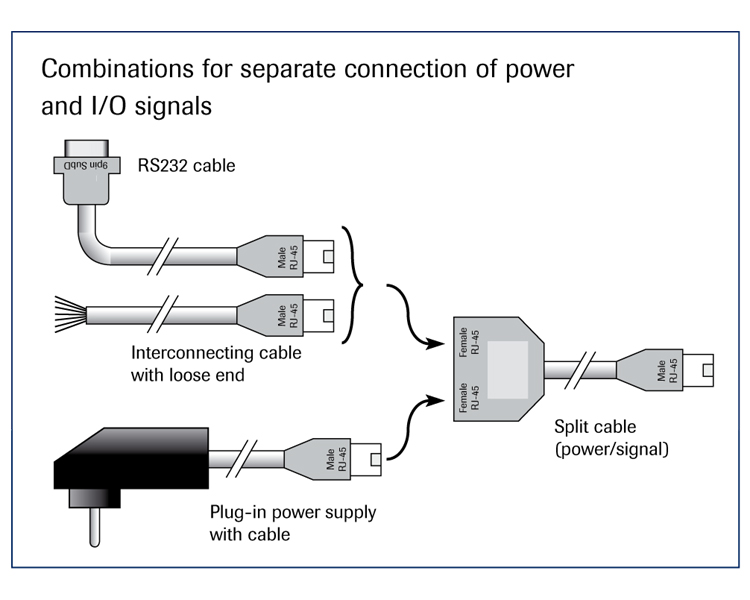

You also need the Modular RJ-45 Y-cable splitter to connect this cable and the power supply to a MASS-VIEW(r) instrument.

When using this cable, the analog output and relay outputs cannot be used.
If you would like to use these outputs also at the same time, you should buy the loose end cable (7.03.427).

Cable RJ-45 male - DB9 female, 3 meter / 10 ft [7.03.426]

Cable RJ-45 male - DB9 female, 3 meter / 10 ft [7.03.426]

This cable is needed to connect a MASS-VIEW(r) instrument via RS-232 to a computer.

You also need the Modular RJ-45 Y-cable splitter to connect this cable and the power supply to a MASS-VIEW(r) instrument.

When using this cable, the analog output and relay outputs cannot be used.
If you would like to use these outputs also at the same time, you should buy the loose end cable (7.03.427).

Online price starting with:

$33.60

Fully stocked

Dispatch will be within 2 days
