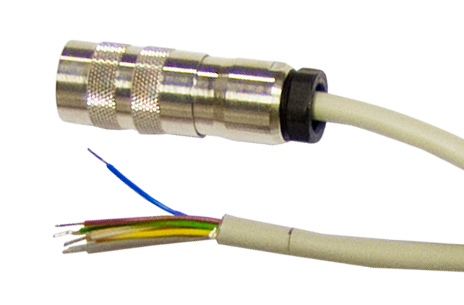

Interconnecting Cable 8-Din female loose end, 3 meter / 10 ft [7.03.191]
This cable can be used to connect a MASS-STREAM instrument via to a computer, PLC, PAC or DAQ system..
You can also use the RS-232 T-part cable to connect this cable and the power supply to a MASS-VIEW(r) instrument. See example on the picture.
This cable can also be used to measure the analogue output and connect the relays of the MASS-STREAM instrument
Features of Interconnecting Cable 8-Din female loose end, 3 meter / 10 ft [7.03.191]

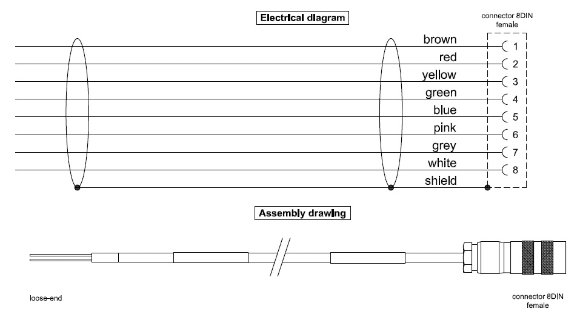

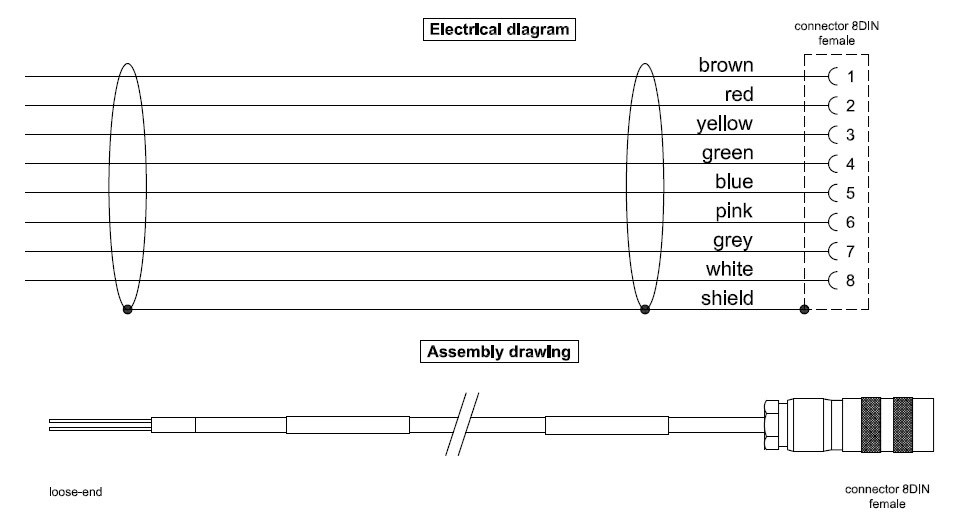

hook-up diagram
1 = Brown | 4 = Green | 7 = Grey |
2 = Red | 5 = Blue | 8 = White |
3 = Yellow | 6 = Pink |
Housing = Shield
