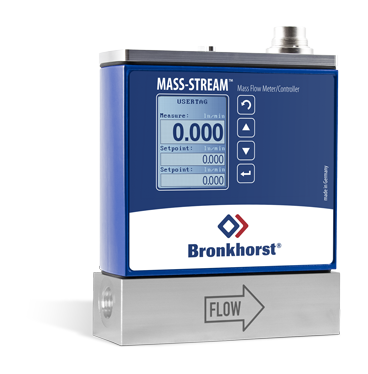

MS-105 MASS-STREAM 50 ln/min
- Proven direct inline CTA sensor (no bypass)
- Excellent repeatability
- Compact, rugged design (IP65, dust and waterproof)
- Very low pressure drop
- Less sensitivity to humidity or dirt
- With integrated multi-functional TFT display
Multiple gases
Multiple outputs
Pre-installed gases
| Gases | max. range |
|---|---|
| Air, N2 | 50 ln/min (= 50 SLM) |
| O2 | 48 ln/min (= 48 SLM) |
| Ar | 100 ln/min (= 100 SLM) |
| CH4 | 30 ln/min (= 30 SLM) |
| CO2 | 54 ln/min (= 54 SLM) |
With free software Bronkhorst FlowSuite, you can take full advantage of the features of the instrument such as fluid selection, unit and capacity changes, alarm and counter functions.
The instrument can be easily hooked up to a PC by using additional cables.
Read here how to hookup the MASS-STREAM to the PC.
Features of MS-105 MASS-STREAM 50 ln/min
- Direct inline measurement principle
- Mass flow measurement wide scope of applications
- Good response times
- Including calibration certificate
- Low sensitivity to dirt and humidity
- Compact and robust design
- Measurement without moving parts
- Connect the instrument to a PLC (programmable logic controller), PAC (programmable automation controllers) or DAQ (data acquisition system) with our loose end cable 7.03.191
- Modern multi-functional TFT display
- IP65 compliant
- Operator buttons on the instrument
- Customized adjustable multi-functional display: actual flow, totaliser with memory and reset,
alarm, setup and much more
Technical specifications
Measurement / control system
Flow range
up to 50 ln/min Air
Accuracy
± 1,0 % RD plus ± 0.5% FS (at calibration conditions)
(incl. factory calibration certificate on Air)
(incl. factory calibration certificate on Air)
Repeatability
< 0,2 % FS
Turndown ratio
up to 1:100
Operating pressure
up to 10 bar (g)
Pre-installed gases
Air, N2, O2, Ar, CH4, CO2
Standard calibration gas
Air, other gases are converted using our FLUIDAT Onboard model which will introduce small inaccuracy
Response time (sensor)
approx. 0,9 sec.
Operating temperature
0 … 50 °C
Leak integrity, outboard
tested < 2 x 10-8 mbar l/s He
Attitude sensitivity
at 90° deviation from horizontal max. error 0,2 % at 1 bar typical N2
Pressure sensitivity
±0,3% Rd/bar typical (Air)
Mechanical parts
Material (wetted parts)
Instrument body: Aluminium EN AW-6082-T6 Sieves, rings and sensor: Stainless steel SS 316
Process connections
BSPP female thread G1/4" (ISO1179-1)
Sealing material
FKM
Ingress protection
IP65
Electrical properties
Power supply
+15 … 24 Vdc ±10%
Analog output
4…20 mA (sourcing output)
EMC
CE / RoHS
Digital Communication
RS232
Electrical connection
8 DIN (male)
Product details
Downloads
Applications
- Calibration of air samplers
- Process gas measurement in food industry, chemical and petrochemical industries, in fermentation installations and in biotechnology
- 3D printing of metal products
- Gas consumption measurement for internal accounting
- Methane production in anaerobic digesters
- Oxygen supply in beer brewing process
- Surface treatment
- Test benches
- Aeration of liquids or substances
- Ratio control in burner & furnace applications
- And much more
