RS-485 cable for MASS-VIEW [7.03.467] This cable can be used to connect a MASS-VIEW® instrument on the standard Bronkhorst High-Tech RS-485 bus for using it with Modbus.

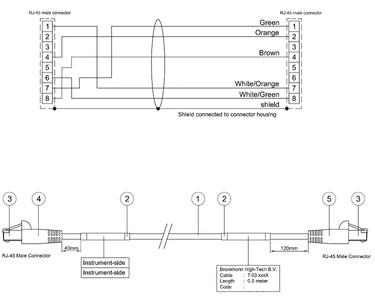

The cable is wired for power supply and RS-485 (A and B). Connect the black side to the instrument and the red side to the bus.

RS-485 cable for MASS-VIEW [7.03.467]

This cable can be used to connect a MASS-VIEW® instrument on the standard Bronkhorst High-Tech RS-485 bus for using it with Modbus.
The cable is wired for power supply and RS-485 (A and B). Connect the black side to the instrument and the red side to the bus.
Online price starting with:
$31.16
Fully stocked
Dispatch will be within 2 days


Features of RS-485 cable for MASS-VIEW [7.03.467]

This cable can be used to connect a MASS-VIEW® instrument on the standard Bronkhorst High-Tech RS-485 bus for using it with Modbus.
The cable is wired for power supply and RS-485 (A and B). Connect the black side to the instrument and the red side to the bus.

Length of the cable is 0.5 meters.

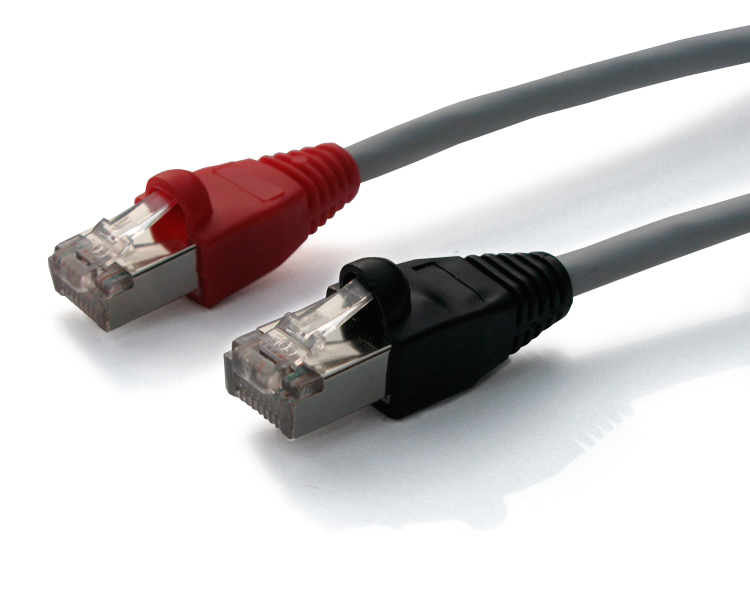

The black connection is the instrument side, the red connection is the standard Bronkhorst High-Tech RS-485 bus side.

When using this cable, the analog output and relay outputs cannot be used.  If you would like to use these outputs also at the same time, you should buy the loose end cable (7.03.427)
