MASS-STREAM Plug-in power supply [7.03.906]
- Power supply 100...240 Vac (47...63 Hz)
- Output 24V/0.625A (maximum 15W)
- Constant voltage, current limited
- Continuously short circuit proof
- Interchangeable plugs (Euro, UK, USA, Australian, IEC) for mains connection

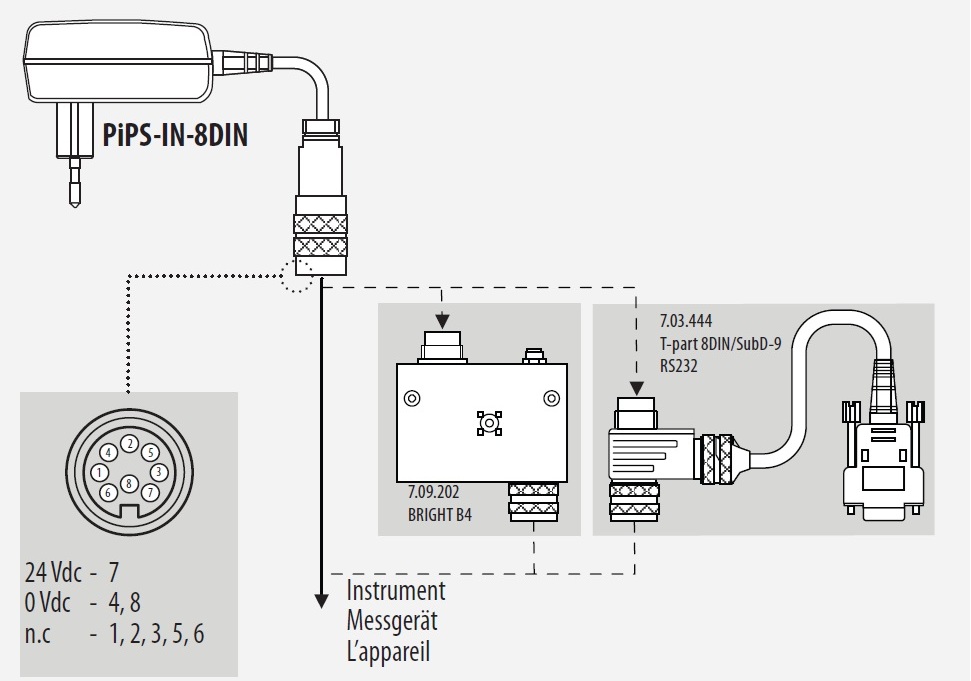

- 8Dinconnector for instrument connection
- Cable length 2 m
Features of MASS-STREAM Plug-in power supply [7.03.906]
Technical data | |
| Input voltage | 100 to 240 Vac |
| Input current | 600 mA |
| Frequency | 47 to 63 Hz |
| Efficiency | 74% typ. at full load |
| EMC | Conforms to EN 55022: 1998_A1:2000, EN 61000-3-2, E610003-3, EN 61204-3:2000, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
| Output voltage | 24±0.75 Vdc |
| Output current | 625 mA |
| Height | external:34mm |
| Width | external:87.5mm |
| Depth | external:51.5mm |
| AC connector | exchangeable mains plug system: EURO, UK, USA/Japan, Australia, IEC |
| DC connector | 8-DIN |
| Cable | 2 meter / 6 ft |
Environmental specification | |
| Operating temperature | 0 to 40° C at maximum load |
| Storage temperature | -10 to 80° C |
| Humidity | 0% to 90% non condensing |
| Input transient susceptibility | Complies with IEC 61000 requirements |
Safety specification | |
| Standards | Fulfils Class II SELV for the following applications: EN 60950/IEC 60950, UL 60950, CSA 950 (cUL), VDE, CE label |
Reliability specification | |
| Product lifetime (years) | > 5 |
