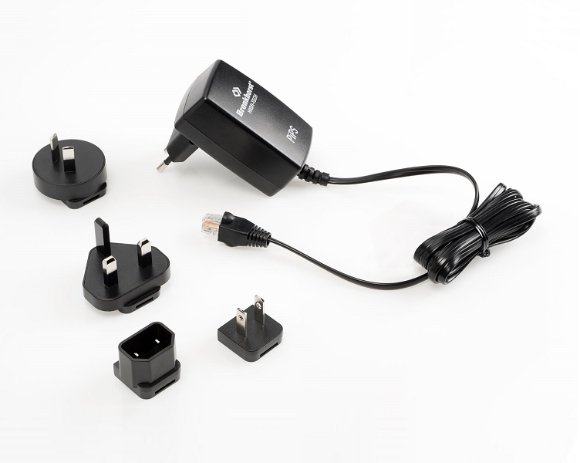

MASS-VIEW Plug-in power supply [7.03.911]

MASS-VIEW Plug-in power supply [7.03.911]

Online price starting with:

$82.95

Fully stocked

Dispatch will be within 2 days

Technical data
Input voltage	100 to 240 Vac
Input current	600 mA
Frequency	47 to 63 Hz
Efficiency	80% typ. at full load
EMC	Conforms to EN 55011, EN 55014, EN 55022/B, FCC 47 part 15, EN 61000-3-2, EN 61000- 4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Output voltage	24±0.75 Vdc
Output current	625 mA
Height	external:34mm
Width	external:87.5mm
Depth	external:51.5mm
AC connector	exchangeable mains plug system: EURO, UK, USA/Japan, Australia, IEC
DC connector	Modular RJ-45
Cable	2 meter / 6 ft
Environmental specification
Operating temperature	0 to 40° C at maximum load
Storage temperature	-10 to 80° C
Humidity	0% to 90% non condensing
Input transient susceptibility	Complies with IEC 61000 requirements
Safety specification
Standards	Fulfils Class II SELV for the following applications: EN 60950/IEC 60950, UL 60950, CSA 950 (cUL), VDE, CE label
Reliability specification
MTBF calculation	200,000 hours at maximum load levels and an ambient temperature of 25° C (in correspondence with MIL-HDBK-217)
