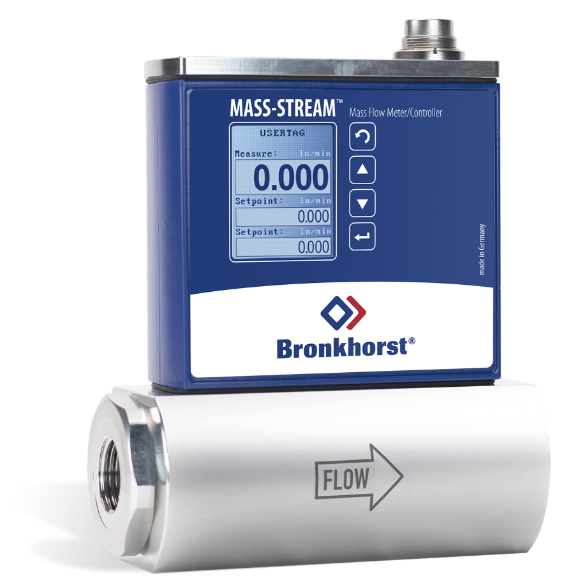

MS-109 MASS-STREAM 1000 ln/min
  • Proven direct inline CTA sensor (no bypass)
  • Excellent repeatability
  • Compact, rugged design (IP65, dust and waterproof)
  • Very low pressure drop
  • Less sensitivity to humidity or dirt
  • With integrated multi-functional TFT display
Multiple gases
Multiple outputs
MS-109 MASS-STREAM 1000 ln/min
MS-109 MASS-STREAM 1000 ln/min

MS-109 MASS-STREAM 1000 ln/min

  • Proven direct inline CTA sensor (no bypass)
  • Excellent repeatability
  • Compact, rugged design (IP65, dust and waterproof)
  • Very low pressure drop
  • Less sensitivity to humidity or dirt
  • With integrated multi-functional TFT display
Online price starting with:
$1573.95
Fully stocked
Dispatch will be within 2 days

Pre-installed gases

Gases
max. range
Air, N2, O2
1000 ln/min (= 1000 SLM)
Ar1200 ln/min (= 1200 SLM)
CH4600 ln/min  (= 600 SLM)
CO21090 ln/min (= 1090 SLM)

Bronkhorst Flow Suite 2 Fluid add

With free software Bronkhorst FlowSuite 2 you can add one of the 34 available fluids or create mixtures on to the instrument.
This way you have a multi fluid instrument for your application

The instrument can be easily hooked up to a PC by using additional cables.
Read here how to hookup the MASS-STREAM to the PC


Features of MS-109 MASS-STREAM 1000 ln/min

  • Direct inline measurement principle
  • Usable for virtually every kind of gas or gas-mix
  • Mass flow measurement wide scope of applications
  • Good response times
  • Including calibration certificate
  • Low sensitivity to dirt and humidity
  • Compact and robust design
  • Measurement without moving parts
  • Connect the instrument to a PLC (programmable logic controller), PAC (programmable automation controllers) or DAQ (data acquisition system) with our loose end cable 7.03.191
  • Modern multi-functional TFT display
    - IP65 compliant
    - Operator buttons on the instrument
    - Customized adjustable multi-functional display: actual flow, totaliser with memory and reset,
       alarm, setup and much more

Technical specifications

Measurement / control system

Flow range
up to 1000 ln/min
(based on Air)
Accuracy
± 1,0 % RD plus ± 0.5% FS (at calibration conditions)
(incl. factory calibration certificate on Air)
Repeatability
< 0,2 % FS
Turndown ratio
1:50
Operating pressure
up to 10 bar (g)
Pre-installed gases
Air, N2, O2, Ar, CH4, CO2 + FLUIDAT Onboard
Standard calibration gas
Air, other gases are converted using our FLUIDAT Onboard model which will introduce small inaccuracy
Response time (sensor)
approx. 0,9 sec.
Operating temperature
0 … 50 °C
Leak integrity, outboard
tested < 2 x 10-8 mbar l/s He
Attitude sensitivity
at 90° deviation from horizontal max. error 0,2 % at 1 bar typical N2
Pressure sensitivity
± 0,3 % RD/bar typical (Air)

Mechanical parts

Material (wetted parts)
Instrument body: Aluminium EN AW-6082-T6
Sieves, rings and sensor: Stainless steel SS 316
Process connections
Female gas thread G1/2" (ISO1179-1)
Seals
FKM
Ingress protection
IP65

Electrical properties

Power supply
+15 … 24 Vdc ±10%
Analog output
4…20 mA sourcing output
EMC
CE / RoHS
Digital Communication
RS232
Electrical connection
8 DIN (male)

Product details

Dimension MASS-STREAM
Dimension MASS-STREAM
Hook up diagram MASS-STREAM
Hook up diagram MASS-STREAM
MS-109
MS-109
