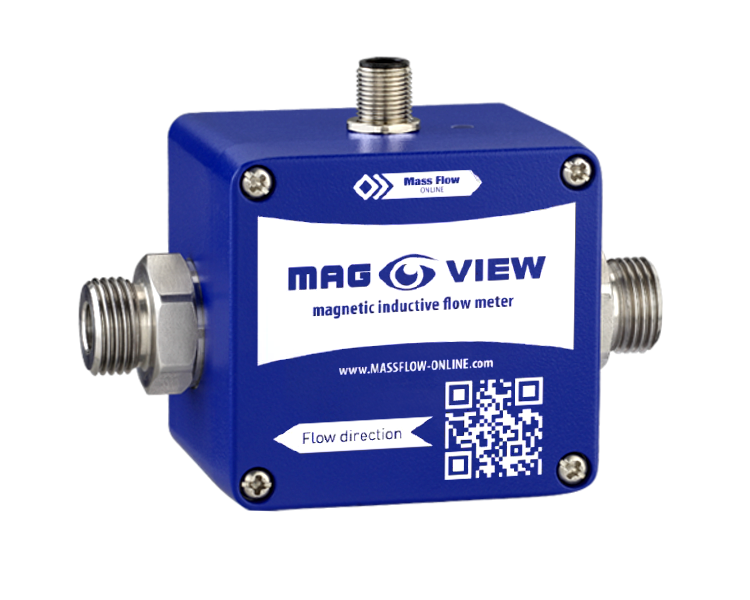

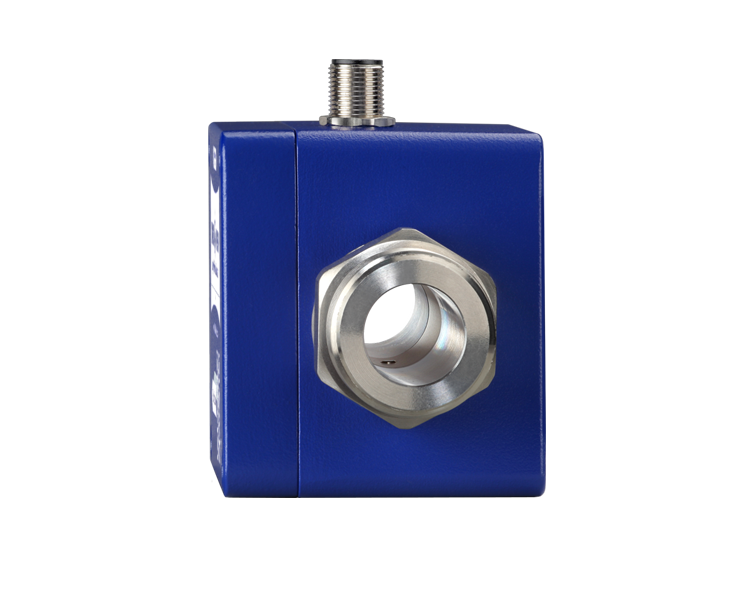

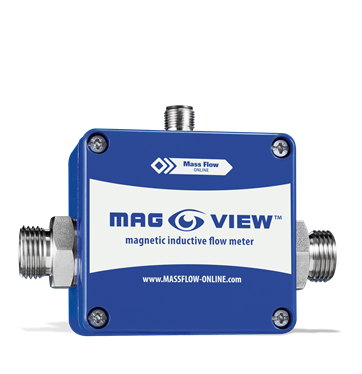

MVM-030-PN Magnetic Flow Meter

MVM-030-PN
Low-Flow Magnetic Inductive Flow meters for water-like liquids

  • Compact, weatherproof (IP65) design
  • No moving parts (no mechanical wear)
  • Interference free operation
  • Independence to inlet/outlet pipework
  • Fast response
  • Free pipe cross section: low ΔP, insensitive to contamination
Water like liquids
Pulse output
MVM-030-PN Magnetic Flow Meter
MVM-030-PN Magnetic Flow Meter
MVM-030-PN Magnetic Flow Meter
MVM-030-PN Magnetic Flow Meter
MVM-030-PN Magnetic Flow Meter

MVM-030-PN Magnetic Flow Meter

MVM-030-PN
Low-Flow Magnetic Inductive Flow meters for water-like liquids

  • Compact, weatherproof (IP65) design
  • No moving parts (no mechanical wear)
  • Interference free operation
  • Independence to inlet/outlet pipework
  • Fast response
  • Free pipe cross section: low ΔP, insensitive to contamination
Online price starting with:
$582.75
Temporarily unavailable
Place your order now, and we'll ship it to you as soon as it's back in stock
You can still continue your order but the desired quantity is not in stock which is 0 pieces. The new lead time will be provided upon order placement
There are only 0 products in stock. Please adjust the quantity if you wish to proceed with your order.

Quantity Discounts Off Price

Amount
5+
10+
Discount
10%
20%
Price
€524.48
€466.20

Flow ranges

This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 0.5 .. 30 lpm.

ModelMinMaxoutput signal starts
MVM-030-PN0.5 l/min30 l/min~ 0.1 l/min

Scope of delivery

  • Magnetic Flow Meter
  • Calibration certificate
  • Packing box
  • MAG-VIEW Manual

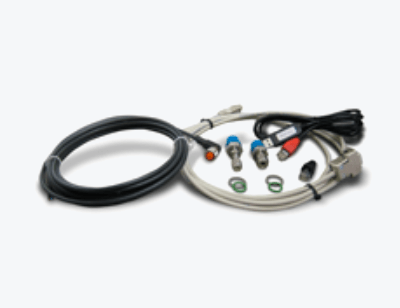

  • (optional) instrument cable

Features of MVM-030-PN Magnetic Flow Meter

  • Makes liquid flows visible by
    • Pulse output
    • Blinking LED (red/green)
  • No mechanical wear
  • No moving parts
  • Ease of mounting and operation
  • Mounting in any position
  • Free pipe cross section
  • No additional pressure drop
  • Fast response (<500 ms)
  • Insensitive with contaminated liquids
  • Ideal solution for interference free operation combined with a long-life cycle
  • Can be used in areas where flow sensors with moving parts cannot be applied
  • Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines

Technical specifications

Measurement / control system

Flow range
0.5.. 30 l/min
Accuracy
±0.7 % of reading ±0.3 % of range
Reproducibility
1%
Pressure rating
PN16
Nominal diameter
DN 7
Flow / alarm indication
Green LED: flow proportional flashing
Signal output starting from
~ 0.4 l/min
Medium
Water and other conductive liquids
(minimum conductivity of 50 μS/cm)
Medium Temperature
-20... 90 °C
Rangeability
1:60
Response time (sensor)
< 500 ms

Mechanical parts

Material (wetted parts)
Housing: Aluminium pressure diecasted
Electrodes: Stainless Steel 1.4571
Process connections: Stainless Steel 1.4571
Measuring pipe: PEEK-GF30
Gasket: EPDM
Process connections
G1/2'' BSP male thread
Ingress protection

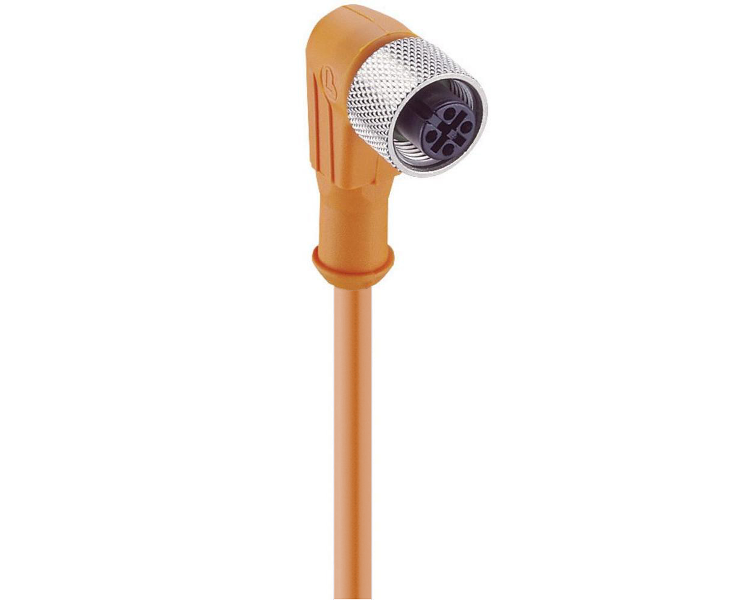

IP65 and IP67 with MFO.CB.25

Electrical properties

Power supply
12... 24 Vdc ±10%
Max. power consumption
max. 150 mA
Frequency output
Pulse rate / K-factor : 1000 pulses/l
Resolution : 1,0 ml/pulse
Signal shape : Push-Pull
Signal shape
Square wave signal, pulse duty ratio 50:50, Push-Pull
Signal current
max. 100 mA, current limited
Pin assignment
PIN 1: +UB
PIN 2: -
PIN 3: GND
PIN 4: frequency output
PIN 5: do not connect
Electrical connection
5-pin-plug M12x1

Product details

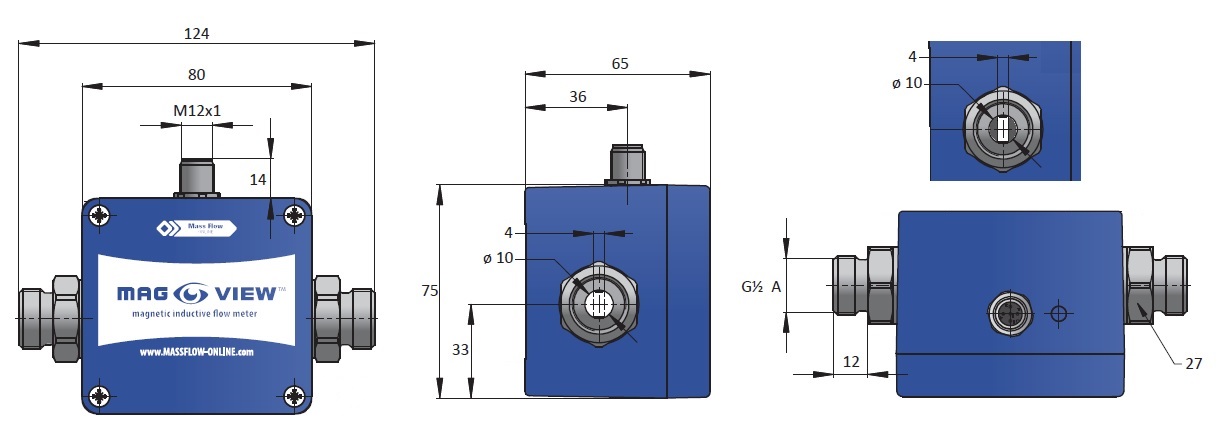

MVM-030-Px dimensions
MVM-030-Px dimensions

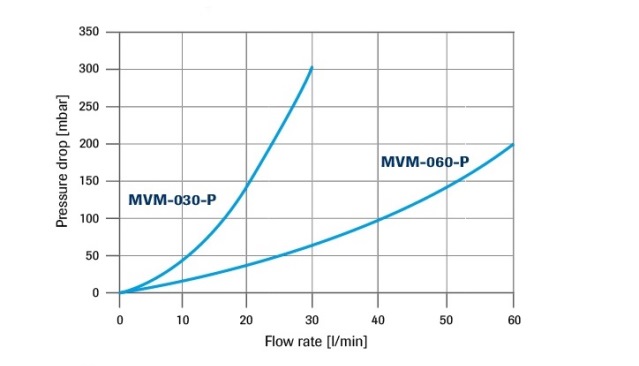

Pressure drop MVM-0x0-Px
Pressure drop MVM-0x0-Px

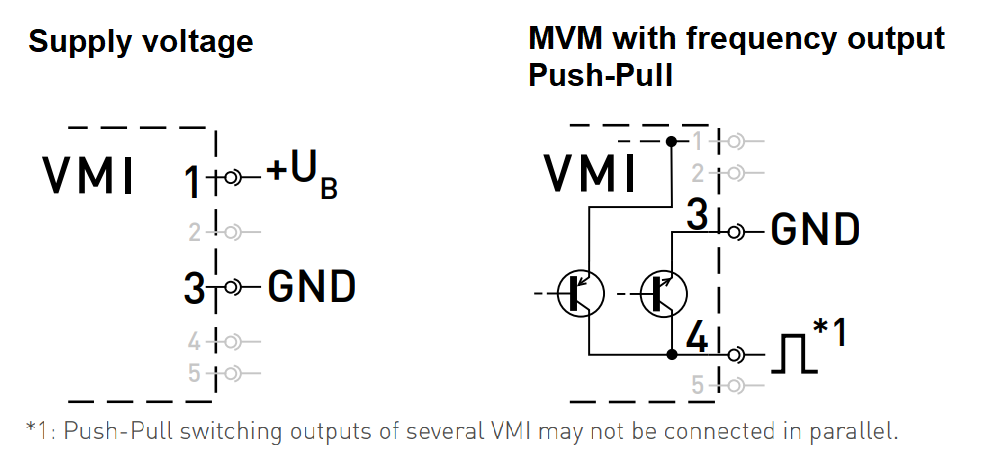

Electrical connection PN
Electrical connection PN


Applications

The fields of application for this magnetic flow meter are diverse:

  • Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
  • Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm
  • Water distribution
  • Chemical feed
