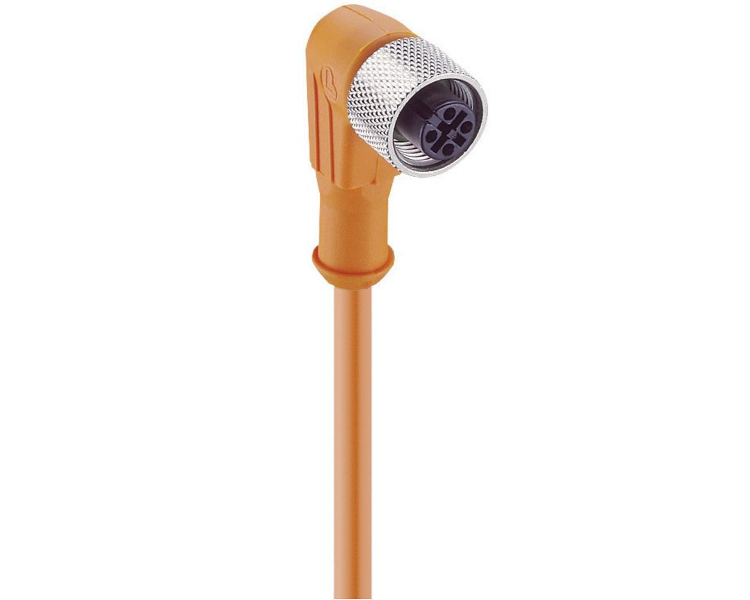

MFO.CB.25 MAG-VIEW / LIQUI-VIEW Base instrument cable
2 meter loose end shielded cable
Is compatibale with our MAG-VIEW and LIQUI-VIEW instruments
Is compatibale with our MAG-VIEW and LIQUI-VIEW instruments
Meter
Features of MFO.CB.25 MAG-VIEW / LIQUI-VIEW Base instrument cable
Cable | Specifications |
Wire/pin assignment | PIN 1 | Brown |
| Length | 2 meter |
| Operating temperature range | -25°C / +80°C |
| Materials | |
| Housing / Molded body | TPU |
| Insert | TPU |
| Contact | CuSn, pre-nickeled and 0.8 microns gold-plated |
| Receptacle shell / knurled screw/ nut / hexagon screw/nut / sleeve | CuZn, nickel-plated |
| O-ring | FKM |
| Outer jacket | PUR, halogen free |
| Mechanical data | |
| Degree of protection | IP67 |
| Electrical data | |
| Contact resistance | ≤ 5 mΩ |
| Nominal current at 40°C | 4A |
| Nominal voltage | 240V |
| Rated voltage | 250V |
| Test voltage | 2.0 kV eff. / 60 s |
| Insulation resistance | > 109 Ω |
| Pollution degree | 3 |
