MVM-250-QA Magnetic Flow Meter Magnetic Flow Meter [12.5 .. 250 lpm, 4 .. 20 mA]

The MAG-VIEW™ series operate on the magnetic inductive principle. The complete absence of moving parts, its interference free operation and the insensitivity with contaminated liquids, makes this magnetic flow meter the perfect solution even in compact machines with cramped confines.
Water like liquids
Pulse & 4..20mA

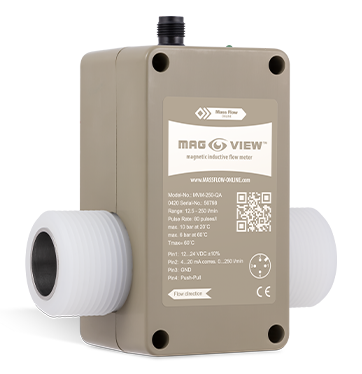

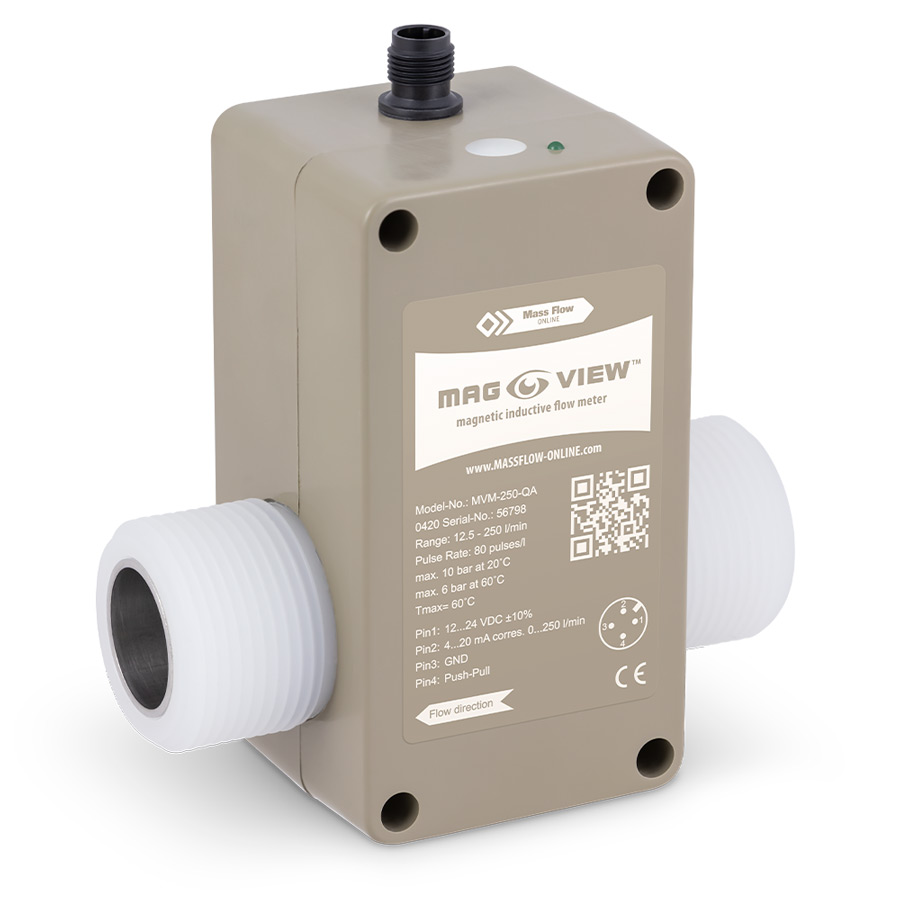

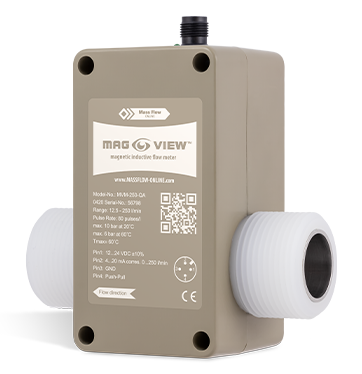

MVM-250-QA Magnetic Flow Meter
MVM-250-QA Magnetic Flow Meter
MVM-250-QA Magnetic Flow Meter
MVM-250-QA Magnetic Flow Meter

MVM-250-QA Magnetic Flow Meter

Magnetic Flow Meter [12.5 .. 250 lpm, 4 .. 20 mA]

The MAG-VIEW™ series operate on the magnetic inductive principle. The complete absence of moving parts, its interference free operation and the insensitivity with contaminated liquids, makes this magnetic flow meter the perfect solution even in compact machines with cramped confines.
Online price starting with:
$656.25
Fully stocked
Dispatch will be within 2 days
You can still continue your order but the desired quantity is not in stock which is 3 pieces. The new lead time will be provided upon order placement
There are only 3 products in stock. Please adjust the quantity if you wish to proceed with your order.

Quantity Discounts Off Price

Amount
5+
10+
Discount
10%
25%
Price
€590.63
€492.19

Flow ranges

This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 12.5 .. 250 lpm.

ModelMinMaxoutput signal starts
MVM-250-QA12.5 l/min250 l/min~ 5 l/min

Scope of delivery

  • Magnetic Flow Meter
  • Calibration certificate
  • Packing box
  • MAG-VIEW Manual
  • (optional) instrument cable

Features of MVM-250-QA Magnetic Flow Meter

  • Makes liquid flows visible by
    • Pulse output
    • Analog output (4..20 mA)
    • Blinking LED (green)
  • No mechanical wear
  • No moving parts
  • Ease of mounting and operation
  • Mounting in any position
  • Free pipe cross section
  • No additional pressure drop
  • Fast response (<100 ms)
  • Insensitive with contaminated liquids
  • Ideal solution for interference free operation combined with a long-life cycle
  • Can be used in areas where flow sensors with moving parts cannot be applied
  • Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines

Technical specifications

Measurement / control system

Flow range
12.5 … 250 l/min
Accuracy
±0.7 % of reading ±0.3 % of range
(incl. factory calibration certificate; test conditions: water 23°C)
Repeatability
1 % FS
Max. flow rate
300 l/min
Temperature rating
Ambient temperature: -15..60°C
Storage temperature: -15..60°C
Operating pressure
10 bar(a) (20 °C), 8 bar(a) (40 °C), 6 bar(a) (60 °C), 5 bar(a) (80 °C)
Nominal diameter
DN 25
Flow / alarm indication
Green LED: flow proportional flashing
Signal output starting from
~ 5 l/min
Medium
Water and other conductive liquids
(minimum conductivity of 20 μS/cm)
Medium Temperature
± -15.. 80 °C (not freezing)
Rangeability
1:20
Response time (sensor)
< 100 ms

Mechanical parts

Material (wetted parts)
Housing: ABS
In contact with fluid:
Electrodes and ground rings: Stainless Steel 1.4404
Process connections: PVDF
Measuring pipe: PVDF
O-Rings: EPDM
Process connections
G1¼'' BSP male thread
Seals
EPDM
Weight
1 kg
Ingress protection
IP65

Electrical properties

Power supply
12 .. 24 Vdc ±10%
Max. power consumption
Typical 1.1 W, max. 3.6 W
Electrical protection measures
short-circuit proof,
protected against polarity reversal
Analog output
4 … 20 mA
Frequency output
Pulse rate / K-factor : 80 pulses/l
Resolution : 12,5 ml/pulse
Signal shape : Push-Pull
Signal shape
Square wave signal, duty cycle 50:50 (Push-Pull)
Signal current
Max. 100 mA
Pin assignment
PIN 1: +12…24 VDC+10%
PIN 2: Analog output 4..20mA
PIN 3: -GND
PIN 4: Frequency output(Push-pull)
Electrical connection
4-pin-plug M12x1

Product details

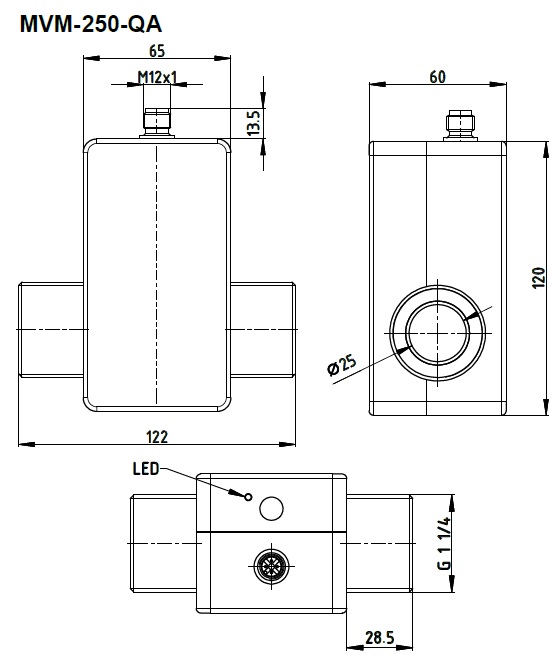

Dimensions MVM-250-QA
Dimensions MVM-250-QA
Electrical connection
Electrical connection

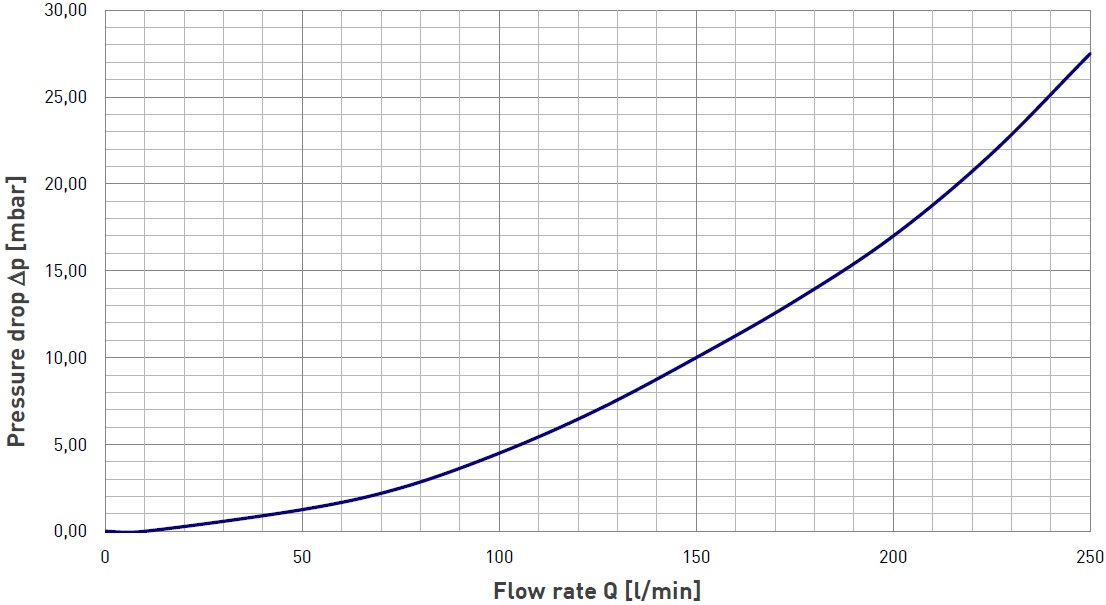

Pressure drop MVM-250-QA
Pressure drop MVM-250-QA


Applications

The fields of application for this magnetic flow meter are diverse:
