The compact magnetic flow meter for measuring or dosing electrically conductive liquids

The MAG-VIEW™ series operate on the magnetic inductive principle. The complete absence of moving parts, its interference free operation and the insensitivity with contaminated liquids, makes this magnetic flow meter the perfect solution even in compact machines with cramped confines.

Advantages of MAG-VIEW™MAG-VIEW Logo

  • The ideal solution for interference free operation
  • No mechanical wear
  • These magnetic flow meters have a long-life cycle
  • Can be used in areas where flow sensors with moving parts cannot be applied
  • Insensitive against pressure peaks and particles in the medium because of protected transducers
  • Wide independence to the inlet and outlet pipes enable installation in compact machines with cramped confines
  • No additional pressure drop
  • Insensitive with contaminated liquids

See the table below for all the different models with corresponding flow ranges and output.
↓See table

Flow Ranges


Metal version
 (Robust metal housing for high temperatures and pressures)

Analog (4-20 mA) Output +

Frequency output

Metal version
 (Robust metal housing for high temperatures and pressures)

Frequency Output

Plastic version
(Cost-optimized and lightweight plastic design)

Analog (4-20 mA) Output + Frequency output

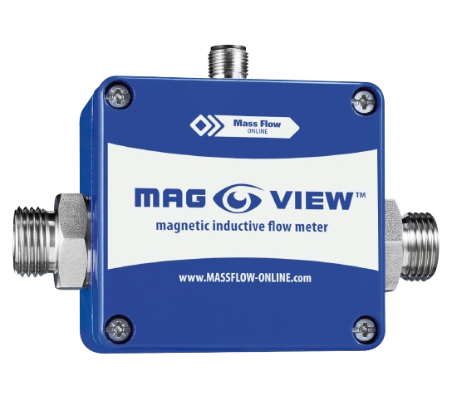

0.0083 .. 1 l/minMVM-001-PAMVM-001-PN
0.05 .. 2 l/min
MVM-002-PAMVM-002-PN
0.1 .. 2 l/min

MVM-002-QA
0.25 .. 5 l/min

MVM-005-QA
1 .. 20 l/min

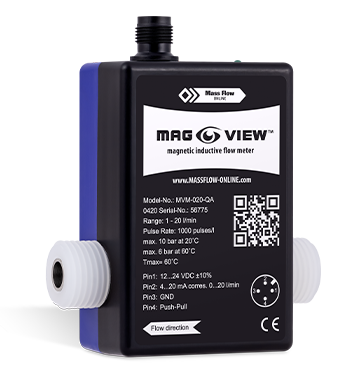

MVM-020-QA
0.1 .. 30 l/min
MVM-030-PA
MVM-030-PN
2.5 .. 50 l/min


MVM-050-QA
0.2 .. 60 l/minMVM-060-PAMVM-060-PN
5 .. 200 l/min


MVM-200-QA
12.5 .. 250 l/min


MVM-250-QA
5 .. 250 l/minMVM-250-PAMVM-250-PN
