FLEXI-FLOW Compact: smart thermal mass flow meter for gases

FLEXI-FLOW Compact thermal mass flow meter for gases

The FLEXI-FLOW Compact is a thermal mass flow meter that measures gas flow and temperature in one compact instrument. Because it measures mass flow directly, readings do not need correction for changes in pressure or temperature. Its small footprint makes it ideal for desktop bioreactors, analytical equipment and fuel cell production.

Flow ranges from 0.1–5 mln/min up to 10–500 ln/min (N₂ equivalent)
8 pre-installed gases: Air, N₂, O₂, H₂, Ar, He, CH₄ and CO₂
Choose from 22 gases with Bronkhorst's FLUIDAT Onboard, using the free Bronkhorst FlowSuite software on PC or mobile
Bluetooth and USB-C for easy configuration
Digital output via FLOW-BUS and Modbus RTU

All 6 models are in listed below with their flow range and price.

Find your ideal flow meter in 30 seconds

30 seconds
No quote needed
Straight to the product

Start the selector

FF-101 FLEXI-FLOW 5 mln/min

Control Flow, Measure Pressure & Temperature
Easy gas selection with 22 onboard gases
Compact design with Bluetooth & USB-C

$1475.00

Fully stocked

Ships within 2 business days

FF-103 FLEXI-FLOW 50 mln/min

Multiple Gases
Easy gas selection with 22 onboard gases
Compact design with Bluetooth & USB-C

$1475.00

Fully stocked

Ships within 2 business days

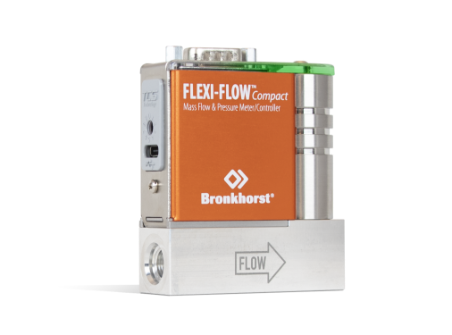

FF-105 FLEXI-FLOW 500 mln/min

Multiple Gases
Easy gas selection with 22 onboard gases
Compact design with Bluetooth & USB-C

$1475.00

Fully stocked

Ships within 2 business days

FF-107 FLEXI-FLOW 5 ln/min

Multiple Gases
Easy gas selection with 22 onboard gases
Compact design with Bluetooth & USB-C

$1475.00

Fully stocked

Ships within 2 business days

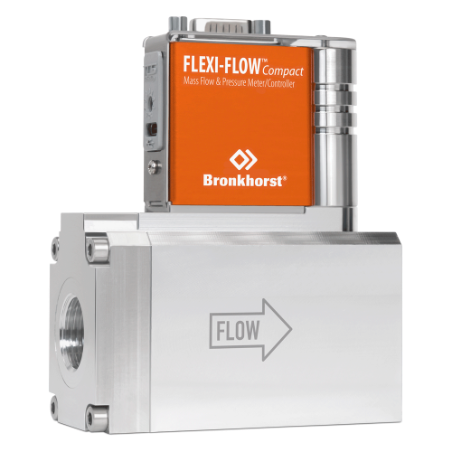

FF-109 FLEXI-FLOW 50 ln/min

Multiple Gases
Easy gas selection with 22 onboard gases
Compact design with Bluetooth & USB-C

$1722.80

Fully stocked

Ships within 2 business days

FF-111 FLEXI-FLOW 500 ln/min

Multiple Gases
Easy gas selection with 22 onboard gases
Compact design with Bluetooth & USB-C

$3003.10

Fully stocked

Ships within 2 business days

Maximum flow capacity per gas

FLEXI-FLOW Compact: measuring range and maximum capacity per gas
Model	Measuring range (N₂)	Unit	Air	N₂	O₂	H₂	Ar	He	CH₄	CO₂
FF-101	0.1 – 5	mln/min	5	5	4.5	5	5	7	4	3.5
FF-103	1 – 50	mln/min	50	50	45	50	50	70	40	35
FF-105	10 – 500	mln/min	500	500	450	500	500	700	400	350
FF-107	0.1 – 5	ln/min	5	5	4.5	5	5	7	4	3.5
FF-109	1 – 50	ln/min	50	50	45	50	50	70	40	35
FF-111	10 – 500	ln/min	500	500	450	500	500	700	400	350

Values are maximum capacities. Need another gas or a gas mixture? The FLEXI-FLOW supports 22 gases via FLUIDAT Onboard.

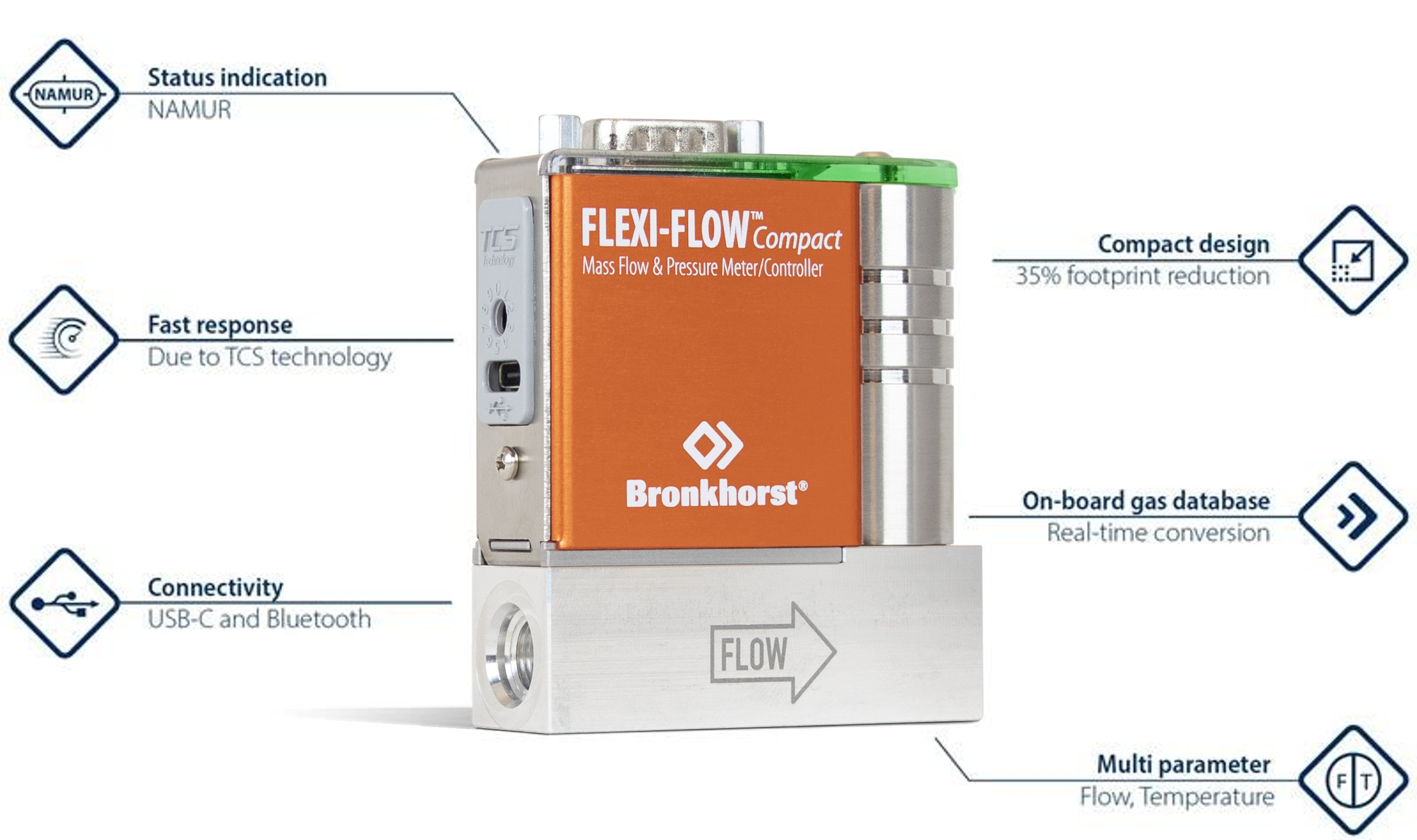

Why the FLEXI-FLOW Compact is good for your flow application?

• Most compact instrument in its class
• Wide usability by onboard gas database, 22 gas types and limitless gas mixes
• Unmatched flow measurement accuracy in every situation and on the long term
• Fast response
• Flow and temperature information for excellent process monitoring
• Easy to use using digital fieldbuses (MODBUS and FLOW-BUS), Bluetooth, USB-C and free Bronkhorst FlowSuite software

Do you need the FLEXI-FLOW in a Controller, please contact your local distributor for advice and a quote.

More possibilities are available for the FLEXI-FLOW like:

More parameters: Flow, temperature, upstream pressure, downstream pressure
More fieldbuses like: Profinet (EtherNet based)
Better accuracy of 0,8%Rd plus ±0,2%FS (Rangeability up to 1:500) or 0,5%Rd plus ±0,1%FS (Rangeability up to 1:1000)
Controller with Shut-off function or downported controller of meter
Body material of parts SS316L incl. Ra<0.8um measureable wetted parts
External display on the instrument

See for more information on the product page of the FLEXI-FLOW at Bronkhorst: All-in-one gas flow meter and controller in compact form
