Helium gas FLOW instrument
The High-Tech replacement for analog Variable Area (rota) Meters
MASS-VIEW® The Intelligent Helium mass flow meter
- Lowest range 20...200 mln/min
- Highest range 0.1...100 ln/min
* ln/min equals SLM at 0°C and 1 atm(STP)
Helium gas Flow meters: Gain Insight into Your Helium Consumption
Helium is one of the most expensive technical gases in the industry, costing approximately 100 times more than compressed air. The price of helium is highly volatile, with current market prices ranging between €5 and €20 per cubic meter.
As a non-renewable gas, helium is crucial for various industries, including medical, electronics, and aerospace.
For instance, helium is used in the semiconductor industry as a protective inert gas.
During the significant industrial growth spurred by the COVID-19 pandemic, helium was difficult to obtain in 2021. Fortunately, supplies have now stabilized.
However, the potential for shortages, combined with the extremely high price, means that you need to keep your helium consumption as efficient as possible and prevent any loss or misuse. Helium gas flow meters monitor your usage and show you where, when, and how much helium is being used.

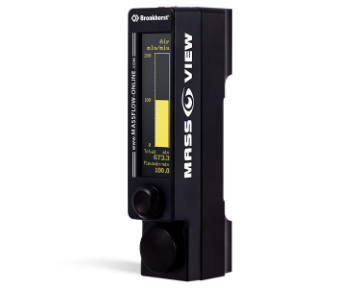

The innovative MASS-VIEW® mass flow meter series are a digital alternative to the conventional VA meters (variable area meters) or purge meters.

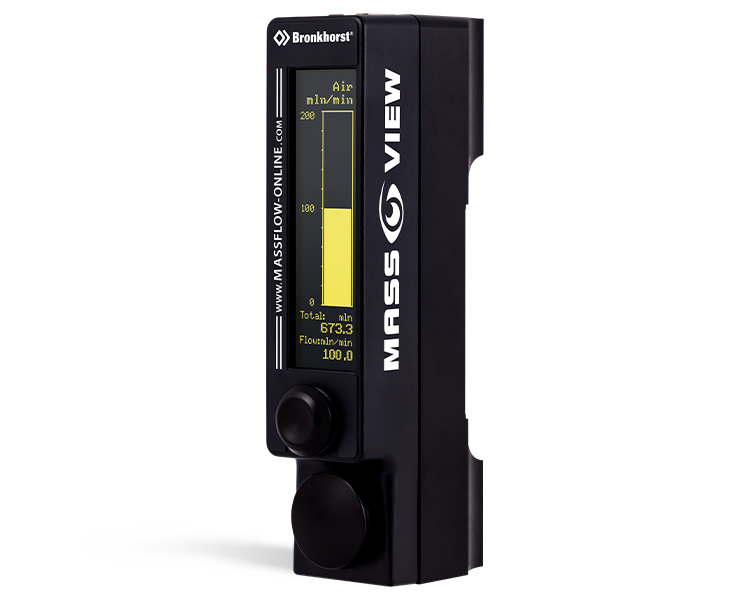

The MASS-VIEW® mass flow meter series incorporates a digital bar graph of actual gas flow, which is, thanks to the OLED (organic light emitting diode) technology, clearly visible from all angles, as well as indicating flow units, gas type and totalised figures.
The MASS-VIEW series is designed to mimic the straightforward features and vertical format of the VA meter/ball meter, but with the considerable added benefits of an electronic output signal, high measuring accuracy, virtual independence from gas temperature and pressure variations, freedom from parallax error and inherently safe construction, by eliminating fragile glass components in the flow path.
Features
- Clear indication in:
- actual flow rate (bar graph and value)
- desired flow units
- type of gas
- totalized flow
- Bright, wide-angle OLED display
- Free of parallax errors
- Virtually independent of pressure and temperature variations
- Low pressure drop
- Wide flow ranges
- Fast response
- High accuracy
- Alarm and counter functions (2 alarm contacts available on meters)
- Analog (0..5 Vdc) and digital communication (Modbus-RTU/ASCII, RS-232 interface)
- Configurable password protection
- 10 pre-installed gases available (Air, N2, O2, Ar, CO, CO2, CH4, C3H8, C4H10, N2O) or H2 or He
- 4 selectable ranges (100%, 50%, 25% and 10% of maximum full scale range)
- Digitally calibrated
Video MASS-VIEW Mass Flow Meter / Regulator
In this video Mass Flow ONLINE, a business unit of Bronkhorst High-Tech, the market leader in the field of thermal mass flow meters and controllers, presents the operation of the MASS-VIEW series Thermal Mass Flow Meters, Regulators and Controllers employing the direct through flow measurement technique.
Applications
- Cryogenic applications
- Shielding gas for Arc welding
- Cooling, filling and weather balloons
- Leak tests
- Pressurizing and purging
- Space industry
- Cooling in Electronics (semiconductors and supercomputers)
- Deep-Sea diving (Helium-Oxygen mix | Heliox)
- Airbags
- Detectors and Sensors
Application stories
Quick links to Helium Mass Flow Meters and Regulators model pages
PN 10 bar - Helium Meter | PN 10 bar - Helium Regulator |
---|---|
MV-191-HE | 20 ... 200 mln/min He | MV-391-HE | 20 ... 200 mln/min He |
MV-192-HE | 50 ... 2000 mln/min He | MV-392-HE | 50 ... 2000 mln/min He |
MV-194-HE | 0.1 ... 20 ln/min He | MV-394-HE | 0.1 ... 20 ln/min He |
MV-196-HE | 0.2 ... 100 ln/min He | MV-396-HE | 0.2 ... 100 ln/min He |
|
|
Downloads
Frequently Asked Questions
Frequently Asked Questions
- Accuracy & Repeatability Flow meters
- Can MASS-VIEW be used at sub-atmospheric pressure conditions?
- How to connect 4 MASS-VIEW's to a RS-485 bus system Modbus
- What communication possibilities can be used with MASS-VIEW?
- What is the sensor principle of MASS-VIEW?
- Which flow units are available to select?
- Alarm settings | What kind of relay is used on Pin 3 and 5?
- How to change the flow unit of a mass flow meter (MASS-VIEW)?
- Accuracy: % Full Scale vs. % Reading
.
