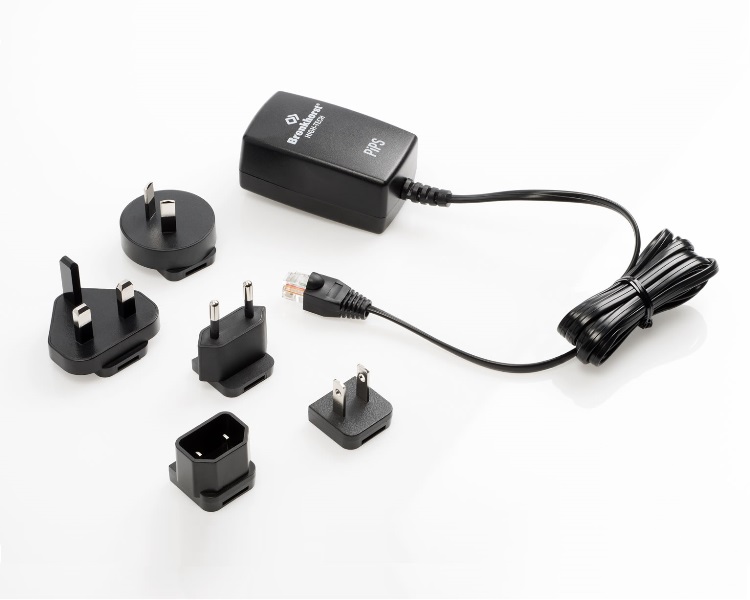

MASS-VIEW Plug-in power supply [7.03.424]
  • Power supply 100...240 Vac (50...60 Hz)
  • Output 15V/0.5A (maximum 7.5W)
  • Constant voltage, current limited
  • Continuously short circuit proof
  • Interchangeable plugs (Euro, UK, USA, Australian, IEC) for mains connection
  • RJ45 connector for instrument connection
  • Cable length 2 m

MASS-VIEW Plug-in power supply [7.03.424]

  • Power supply 100...240 Vac (50...60 Hz)
  • Output 15V/0.5A (maximum 7.5W)
  • Constant voltage, current limited
  • Continuously short circuit proof
  • Interchangeable plugs (Euro, UK, USA, Australian, IEC) for mains connection
  • RJ45 connector for instrument connection
  • Cable length 2 m
Online price starting with:
$63.47
Fully stocked
Dispatch will be within 2 days


Features of MASS-VIEW Plug-in power supply [7.03.424]

Technical data

Input voltage100 to 240 Vac
Input current600 mA
Frequency47 to 63 Hz
Efficiency80% typ. at full load
EMCConforms to EN 55011, EN 55014, EN 55022/B, FCC 47 part 15, EN 61000-3-2, EN 61000-
4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Output voltage
15±0.75 Vdc
Output current500 mA
Heightexternal:34mm
Widthexternal:87.5mm
Depthexternal:51.5mm
AC connector
exchangeable mains plug system: EURO, UK, USA/Japan, Australia, IEC
DC connectorModular RJ-45
Cable2 meter / 6 ft

Environmental specification

Operating temperature
0 to 40° C at maximum load
Storage temperature-10 to 80° C
Humidity0% to 90% non condensing
Input transient susceptibilityComplies with IEC 61000 requirements

Safety specification

StandardsFulfils Class II SELV for the following applications: EN 60950/IEC 60950, UL 60950, CSA
950 (cUL), VDE, CE label

Reliability specification

MTBF calculation
200,000 hours at maximum load levels and an ambient temperature of 25° C (in correspondence with MIL-HDBK-217)
